Leopard 46

Leopard 46 sailing main heading image

Introducing the Leopard 46: The Evolution of Cruising Perfection

The new Leopard 46 sailing catamaran represent a significant upgrade from its predecessor, the Leopard 45. Building upon the successful DNA of Leopard catamarans, this new model offers a spacious, robust, and high-performing cruising experience.

While retaining the core elements that made the Leopard 45 so popular, the Leopard 46 introduces numerous innovations to enhance comfort, convenience, and sustainability. The layout has been refined to provide a seamless integration between the aft cockpit and saloon, allowing for flexible living spaces. The elimination of the skipper cabin has made way for more spacious accommodations, including a choice of three cabins plus a utility room, a four cabin layout, or five double cabins, all with ensuite head/showers.

Available with two standard 45hp Yanmar diesel engines (or optional upgraded 57hp versions), the Leopard 46 also ushers in a new era of sustainability with the optional HYBRID ELECTRIC DRIVE SYSTEM: The system includes a power management box, electric propulsion pod, high-voltage lithium-ion battery, solar array, and range-extending generator. The boat’s power can be sourced from solar panels, sailing regeneration, shore power, and a range extender. The system can manage charging and discharging, providing power for both propulsion and house loads. Testing shows speeds over 8 knots and regeneration capabilities up to 1.8 KW per hour per hull.

Whichever power option you choose, when it comes to sailing performance, the Leopard 46 excels. The stepped hulls and powerful rig with overlapping genoa provide superior handling in all wind conditions. The protected helm station is designed for offshore single-handed sailing, making it ideal for long-distance voyages.

In conclusion, the Leopard 46 represents a significant advancement in cruising catamarans. With its spacious layout, innovative features, and commitment to sustainability, it offers a comfortable, efficient, and enjoyable sailing experience for both novice and experienced sailors alike.

The Future of Cruising

Leopard 46 Open Aft Cockpit
Electric Drive Logo
NEW! Hybrid Electric Drive System
Now available as an option on the new Leopard 46
Hybrid System Overview
Energy Power Managment System
OPTIMAL AUTOMATIC MANAGEMENT
- Algorithms from 20 years of experience in on-board energy management
- Real-time optimisation, based on navigation conditions and passenger behaviour
- Algorithms always favoring the use of renewable energies

UP TO DATE COMPUTER PR
- Remote automatic updates of control software (connected EPMS option)
- Integration with commercial MFDs (Garmin / B&G)
The ONE box
ALL-IN-ONE Power Management Center
- The One Box integrates all the power functions necessary for propulsion.

MODULAR
- Compatible with a large number of batteries and generators
- Available in 2 versions: AC or DC
- Available in 25 and 50 Kw (DC)
- 230 VAC available in 50/60 Hz from 6 to 24 kW

ULTRA-PERFORMING
- State-of-the-art power electronics and conversion technologies for maximum energy efficiency
- Lifespan > 40,000 hours
- Cooling only by air
POD
POWERFUL HIGH EFFICIENCY ENGINE
- Propulsion power of 25 kW, replacing a 75 HP thermal engine
- Optimised yield, zero noise, zero emissions
- Natural cooling

EFFICIENT HYDROGENERATION
- Battery recharge from 4 knots

SIMPLE TO USE
Intuitive controller (automatic brightness adjustment)
Minimal maintenance

EASY TO INTEGRATE
Same assemblyas sail drive
Battery Pack
EFFICIENT BATTERIES
- High-speed lithium iron phosphate technologies
- Latest generation BMS
- Lifespan> 65,000 kWh discharged (> ~10 years)

HIGHLY SECURE BATTERIES
- Stable and intrinsicallysecurebehavior
- Manual sectional (lockout) and IP68 industrialconnectors
- Fire safety: battery flooding device + fire extinguishing device on request

DESIGNED FOR NAVIGATION
- Resistant to temperatures, humidity, vibrations, EMC
- Simple to integratestainlesssteelcontainer
- Natural cooling
Human-Machine Interface
Simple visualisation of energy flows in real time
Previous slide
Next slide

SPECIAL OFFER

Fill out the form below to receive an instant download with the current offer.

Build Your Boat

Visit our Build Your Boat tool for Standard and Optional Equipment lists and Prices

SpECS

TECHNICAL FEATURES

SPECIFICATION AT A GLANCE

Water Capacity

185 gal / 700 L

fuel Capacity

182 gal / 690 L

Displacement

38 925 lbs / 17 656 kg

STANDARD ENGINES

2 x Yanmar 45 hp Diesel

Waterline length

44 ft / 13.42 m

length overall

45 ft 7 in / 13.9 m (47 ft 6 in / 14.48 m with Lifting Platform)

DRAFT

5 ft 5 in / 1.65 m

BEAM

24 ft 1 in / 7.35 m

TOTAL SAIL AREA

1512 sqft / 140.5 sqm

Load Carrying Capacity

12 915 lbs / 5858 kg

Holding Tank Capacity

48 gal / 181 L

All Leopard Catamarans are NMMA and CE Certified.

GENERAL LAYOUT

Profile
3 Cabin plus Workspace
4 Cabin
5 Cabin

Salon & Cockpit Configurations

Standard Configuration

Standard size GRP cockpit table and standard dining table.

Doors Closed

Doors Open

Optional Configuration #1

Compact GRP cockpit table and standard dining table.

Doors Closed

Doors Open

Optional Configuration #2

Compact GRP cockpit table and salon coffee table.

Doors Closed

Doors Open

Optional Configuration #3

Standard size teak cockpit table and standard dining table.

Doors Closed

Doors Open

Optional Configuration #4

Standard size teak cockpit table and coffee table.

Doors Closed

Doors Open

Leopard 46 Standard layout closed
Leopard 46 Standard layout Open
Leopard 46 Layout Option 1 open
Leopard 46 Layout Option 2 closed
Leopard 46 Layout option 2 open
Leopard 46 Layout option 3 Closed
Leopard 46 Layout option 4 Closed
Leopard 46 Layout option 3 Open

VIRTUAL TOUR

MEDIA

GALLERY

Explore the Leopard 46

walkthrough & related videos

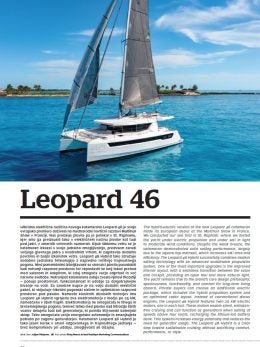

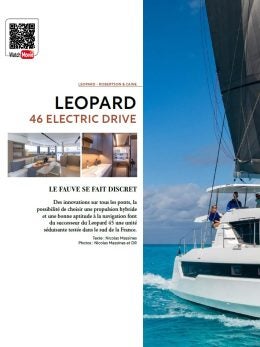

Boat Reviews
